HJIW-4/7.5 Vortex pump
Use range
This Vortex Pump is applicable to water supercharging for boilers, refrigeration systems, high-rise buildings and long-distance water transfer.
LOADING IMAGES
Technical Parameter

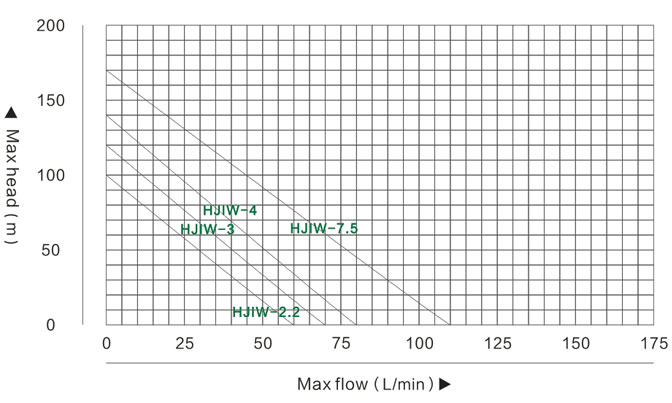

Performance chart
Technical data
| Model | Power | Electricity (V/Hz) |
Rotate speed (r/min) |
Max.flow (L/min) |
Max head (m) |
Pipe size (mm) |
Weight (kg) |
Measurement (mm) |
|
|---|---|---|---|---|---|---|---|---|---|
| KW | HP | ||||||||
| HJIW-4 | 4 | 5.33 | 380/50 | 2900 | 80 | 140 | 40(11/2n) | 38 | 520×290×300 |
| HJIW-7.5 | 7.5 | 10 | 380/50 | 2900 | 110 | 170 | 40(11/2n) | 48 | 570×320×330 |
