HJ-40 Vertical single stage  centrifugal pipe pump
 Use range
The SGR Series Vertical Centrifugal Pipe Pump is applicable for water transfer for clean water and liquid which has similar physical and chemical properties as clean water. It is applicable to industrial and urban water drainage, supercharging for high-rise buildings, garden irrigation, supercharging for fire control systems, long-distance water transfer, heating and cooling circulation, hot and cool water circulation and supercharging for bathrooms etc. It is applicable to temperature which is below 90°C。
Technical Parameter

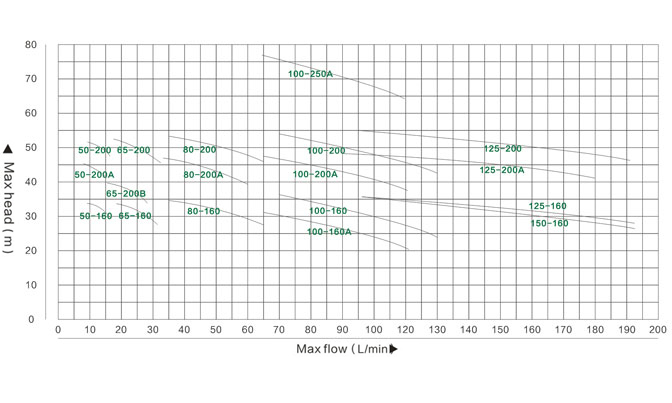

   Performance chart

Technical data
| Model | Power | Electricity (V/Hz)  |
			Rotate speed (r/min)  |
			Max.flow (L/min)  |
			Max head (m)  |
			Pipe size (mm)  |
		|
|---|---|---|---|---|---|---|---|
| KW | HP | ||||||
| HJ-40 | 0.75 | 1 | 380/50 | 2860 | 15.5 | 12.5 | 40(1½") |
