HJ-220E Cool and hot water self-priming centrifugal circulating pump
Use range
The Cool and Hot Water Self-priming Centrifugal Circulating Pump is applicable to water circulation for solar systems, air-source systems, households, gardens, hotels and cottages etc.
LOADING IMAGES
Technical Parameter

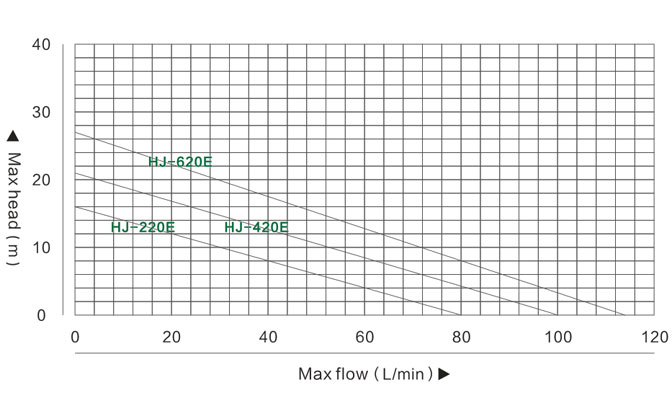

Performance chart
Technical data
| Model | Power | Electricity (V/Hz) |
Rotate speed (r/min) |
Max.flow (L/min) |
Start lift (m) |
Suction (m) |
Pipe size (mm) |
Weight (Kg) |
Measurement (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | |||||||||
| HJ-220E | 0.2 | 0.27 | 220/50 | 2860 | 80 | 16 | 6 | 25(1") | 8 | 270×180×240 |
