PHJ-D1208F/D1508F/D1808 Frequency conversion CNC intelligent self-priming pump
Use range
PHJ.D Series Frequency-converted,Constant-Pressured,Self-priming Pump is automatic water supply system which is controlled by the frequency converter.It has multiple functions such as phase protection,over-voltzge protection,under-voltage protection,over-current protection etc.
This series of pump is suitable for shallow well tap water, boiler's pressurization, refrigeration equipment, long-distance water delivery,water supply for hotel,restaurant and high-rise building.
Technical Parameter

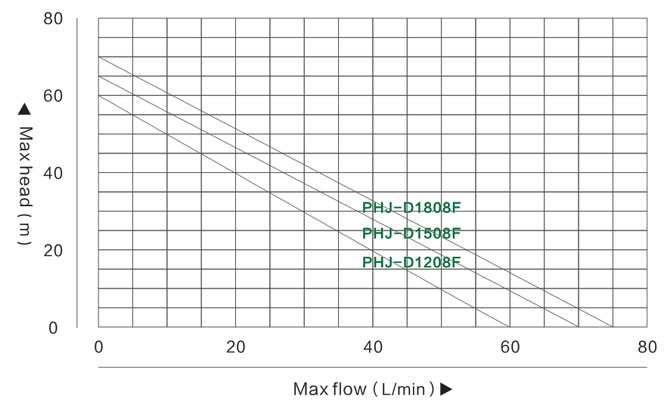

Performance chart
Technical data
Model | Power | Electricity (V/Hz) |
Rotate speed (r/min) |
Max.flow (L/min) |
Start lift (m) |
Suction (m) |
Pipe size (mm) |
Weight (Kg) |
|
---|---|---|---|---|---|---|---|---|---|
KW | HP | ||||||||
PHJ-D1208F | 1.2 | 1.6 | 220/50 | 无级变速 | 60 | 60 | 8 | 32(11/4n) | 25 |
PHJ-D1508F | 1.5 | 2 | 220/50 | 无级变速 | 70 | 65 | 8 | 40(11/4n) | 32 |
PHJ-D1808F | 1.8 | 2.40 | 380/50 | 无级变速 | 75 | 70 | 8 | 40(11/4n) | 33 |
