PHJ-C280A CNC intelligent self-priming pump
Use range
The PHJ.C Series Intelligent Self-priming Pump is a type of small, energy-saving and computer-controlled water supply system. The controller has included: 1.water shortage protection 2.constant work in small water flow 3.working hour setting 4.start-up protection 5. memory function etc.
LOADING IMAGES
Technical Parameter

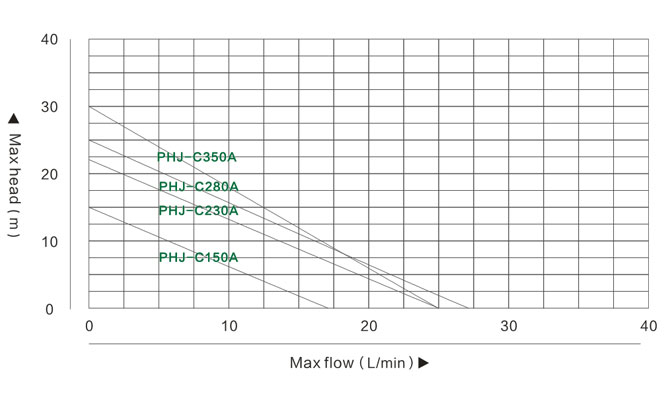

Performance chart
Technical data
| Model | Power | Electricity (V/Hz) |
Capacity (uF) |
Rotate speed (r/min) |
Max.flow (L/min) |
Max.head (m) |
Start lift (m) |
Suction (m) |
Pipe size (mm) |
Weight (Kg) |
Measurement (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | |||||||||||
| PHJ-C280A | 0.28 | 0.37 | 220/50 | 8 | 2860 | 27 | 25 | 10 | 8 | 25(1") | 7.7 | 280×220×255 |
