PHJ-1300A/1301A Automatic cool and hot water self-priming pump
Use range
This Automatic Cool and Hot Water Self-priming Pump is applicable to automatic water supply cycle for hotels, spas, canteens, aquaculture, room heating etc.
LOADING IMAGES
Technical Parameter

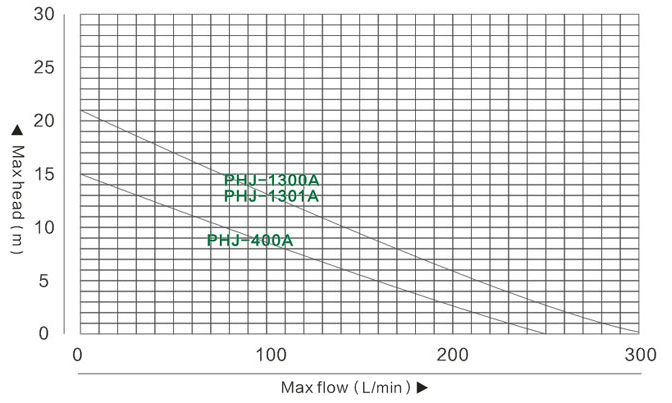

Performance chart
Technical data
| Model | Power | Electricity (V/Hz) |
Rotate speed (r/min) |
Max.flow (L/min) |
Max.head (m) |
Suction (m) |
Pressure Switch (Kg/cm2) |
Pipe size (mm) |
Weight (Kg) |
Measurement (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | ||||||||||
| PHJ-1300A | 1.3 | 1.73 | 220/50 | 2860 | 300 | 21 | 6 | 0.8-1.5 | 40(11/2n) | 33 | 450×340×700 |
| PHJ-1301A | 1.3 | 1.73 | 380/50 | 2860 | 300 | 21 | 6 | 0.8-1.5 | 40(11/2n) | 33 | 450×340×700 |
