PHJ-2200A/4000A Automatic cool and hot water self-priming pump
Use range
This Automatic Cool and Hot Water Self-priming Pump is applicable to water supply for hotels, spas, canteens, high-rise buildings. It is also applicable to long-distance water supply and steam generator supercharging.
LOADING IMAGES
Technical Parameter

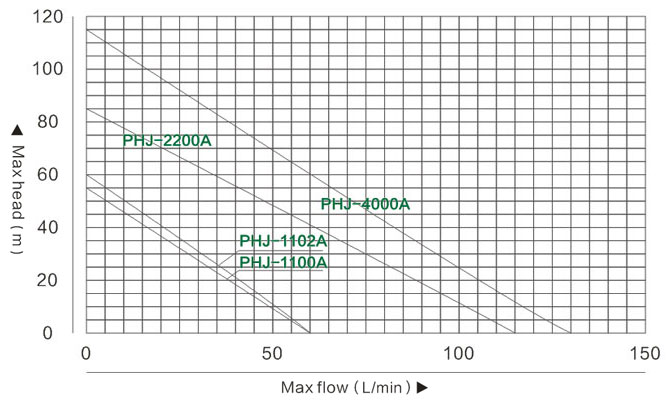

Performance chart
Technical data
| Model | Power | Electricity (V/Hz) |
Rotate speed (r/min) |
Max.flow (L/min) |
Max.head (m) |
Suction (m) |
Pressure Switch (Kg/cm2) |
Pipe size (mm) |
Weight (Kg) |
Measurement (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | ||||||||||
| PHJ-2200A | 2.2 | 2.93 | 380/50 | 2860 | 115 | 85 | 9 | 4-6 | 40(11/2n)/50(2n) | 40 | 470×320×350 |
| PHJ-4000A | 4 | 5.33 | 380/50 | 2860 | 130 | 115 | 9 | 4-6 | 40(11/2n) | 63 | 500×310×400 |
