PHJ-250A Automatic cool and hot water self-priming pump
Use range
This Automatic Cool and Hot Water Self-priming Pump is applicable to water supply for tap water, well water, patios, hotels, spas, hair salons, room heating, high-end residential water supercharging, industrial water circulating etc.
LOADING IMAGES
Technical Parameter

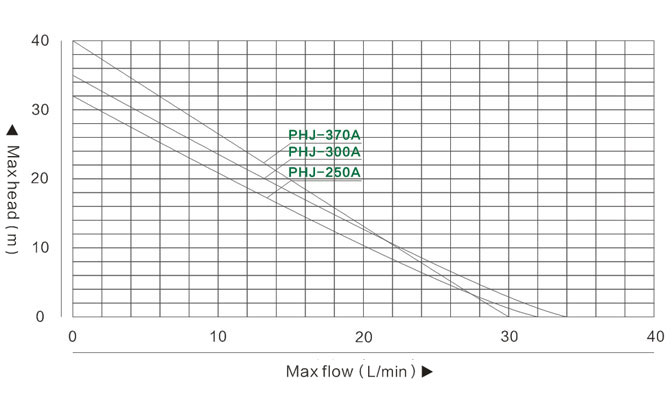

Performance chart
Technical data
| Model | Power | Electricity (V/Hz) |
Rotate speed (r/min) |
Max.flow (L/min) |
Max.head (m) |
Suction (m) |
Pressure Switch (Kg/cm2) |
Pipe size (mm) |
Weight (Kg) |
Measurement (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | ||||||||||
| PHJ-250A | 0.25 | 0.33 | 220/50 | 2860 | 32 | 32 | 9 | 1.5-2.2 | 25(1") | 12.5 | 300×240×330 |
