PHJ-B200A/B300A/B400A Intelligent self-priming pump
Use range
PHJ-B series of intelligent self-priming pump is widely used in water heaters, solar hot and cold water pressurized, family living water, enterprises, hotels, cafeteria and other equipment and high-rise building water supply.
LOADING IMAGES
Technical Parameter

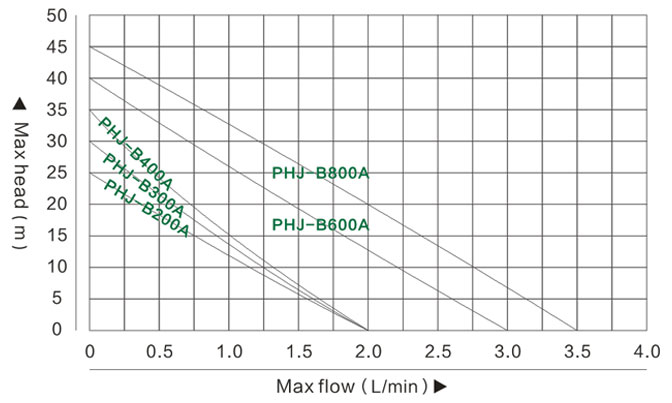

Performance chart
Technical data
| Model | Power | Electricity (V/Hz) |
Max flow (L/min) |
Max head (m) |
Rated flow (m3/h) |
Rated head (m) |
Suction (m) |
Pipe size (mm) |
Weight (kg) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | |||||||||
| PHJ-B600A | 0.6 | 0.8 | 220/50 | 3 | 40 | 1.5 | 22 | 8 | 25 | 13.2 |
| PHJ-B800A | 0.8 | 1.07 | 220/50 | 3.5 | 45 | 1.5 | 28 | 8 | 25 | 14.1 |
