HJWG-90EA Wg automatic booster pump
Use range
The WG Automatic Booster Pump is applicable to automatic supercharging for hot water heaters and family water pressure. It is also applicable to water circulation for aquariums and industrial equipments etc.
LOADING IMAGES
Technical Parameter

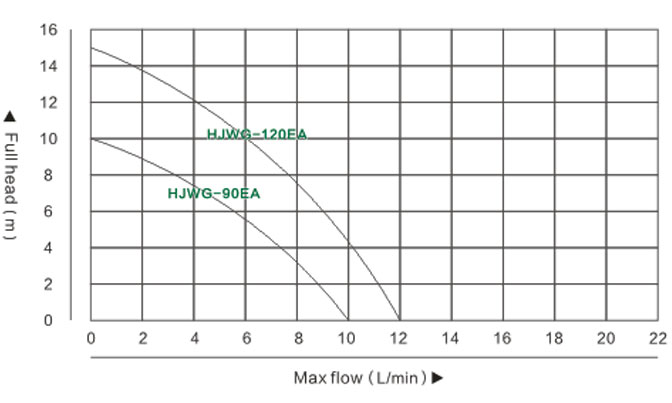

Performance chart
Technical data
| Model | Power | Electricity (V/Hz) |
Rotate speed (r/min) |
Max.flow (L/min) |
Full head (m) |
Pipe size (mm) |
Weight (Kg) |
Measurement (mm) |
Remarks (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | |||||||||
| HJWG-90EA | 0.09 | 0.12 | 220/50 | 2860 | 10 | 10 | 15(1/2")20(3/4") | 2.6 | 220×130×130 | 不锈钢泵头 |
| HJWG-90EA | 0.09 | 0.12 | 220/50 | 2860 | 10 | 10 | 15(1/2") | 2.6 | 220×130×130 | 冷热水型 |
| HJWG-90EA | 0.09 | 0.12 | 220/50 | 2860 | 10 | 10 | 15(1/2") | 2.6 | 220×130×130 | |
